Oil Free Air Compressors

Oil Free Air Compressors

Complete series of Oil Free Air Compressors, proven two-three stage power saving technology
for wide range of applications, wherein the air quality is vital.

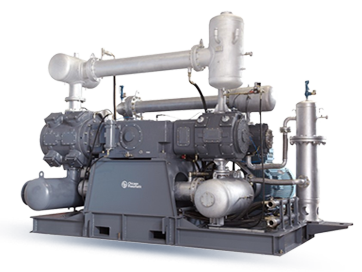

PET Series

100% Oil free PET compressor

  • 100% Oil Free Air Compressor for PET blow moulding application.
  • 3/4 stage compression with optimum intercooling, to maximise efficiency.
  • In-built IVR to adds more on energy savings
  • 24 hours reliable operations
  • Complete package on AVM, with no need of foundation.
  • Unique package with Air Dryer & Receiver.
Model

Max Working Pressure

Bar

 psi

Capacity*

l/s

 m3/min cfm

Installed Motor Power

Kw

 HP
30P03-25
24 ~ 32 348 ~ 464
26 1.56 55
18 25
30P05-40
24 ~ 32 348 ~ 464
54 3.23 114
30 40
35P08-60
24 ~ 32 348 ~ 464
73 4.39 155
45 60
40P05-50
35 ~ 42 508 ~ 609
54 3.23 114
37 50
40P10-75
35 ~ 42 508 ~ 609
73 4.39 155
37 60
40P19-120
35 ~ 42 508 ~ 609
142 8.49 300
90 120
40P20-180
35 ~ 42 508 ~ 609
192 11.52 407
132 180
40P22-215
35 ~ 42 508 ~ 609
242 14.50 512
160 215
40P27-270
35 ~ 42 508 ~ 609
340 20.39 720
200 270
40P37-335
35 ~ 42 508 ~ 609
453 27.18 960
250 335
40P52-540
35 ~ 42 508 ~ 609
717 43.01 1519
400 540
Reference Conditions
Ambient Temp & Cooling Water:- 32°C, 89.6°F
Suction Pressure:- 1 bar (e), 14.5 psig
*Reference conditions according to BS 1571 Part II
*Capacity measurement at the outlet of Package.

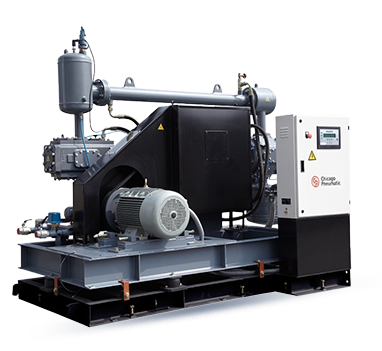

Oil Free Air Compressors

HX HN Compressors for every industry and application

Full range of 100% Oil Free compressor for every industry & applications:
  • 100% Oil Free Air compressor
  • Energy savings with IVR
  • Compact self contained package
  • Environment friendly
  • Reliable electronic control
  • In-built IVR drive models
Model (Vertical Normal Pressure)
Capacity FAD min- max*


m3 / min cfm
Max Working Pressure


bar (e) psig
Capacity FAD min- max*


m3 / min cfm
Max Working Pressure*


bar (e) psig
Installed Motor Power


HP
HX1T-15NP/PS
1.19 42
10 145
1.7 60
7 102
15
HX1T-20NP/PS
1.98 70
9 131
2.44 86
7 102
20
HX1T-25N1P/PS
2.46 87
9 131
2.83 100
7 102
25
HX1T-25N2P/PS
2.69 95
9 131
3.23 114
7 102
25
HX1T-30NP/PS
3.17 112
9 131
3.85 136
7 102
30


Model (Horizontal, Two Cylinder, Balanced-Opposed Models)
Capacity FAD min- max*



m3 / min cfm
Max Working Pressure



bar (e) psig
Capacity FAD min- max*



m3 / min cfm
Max Working Pressure*



bar (e) psig
Installed Motor Power



HP
HX2T-30NP
3.45 122
10 145
4.47 158
7 102
30
HX2T-40NP
5.35 189
10 145
6.31 223
7 102
40
HX2T-50NP
6.06 214
10 145
7.73 273
7 102
50
HX2T-60NP
8.01 283
10 145
9.40 332
7 102
60
HX2T-75NP
9.17 324
10 145
11.67 412
7 102
75
HX2T-100NP
13.37 472
10 145
14.84 524
7 102
100
HN2T-120NP/PS
16.31 576
10 145
18.24 644
7 102
120
HN2T-150NP/PS
19.31 682
10 145
23.13 817
7 102
150
HN2T-180NP/PS
23.19 819
10 145
26.11 922
7 102
180
HN2T-215NP
27.04 955
10 145
33.47 1182
7 102
215

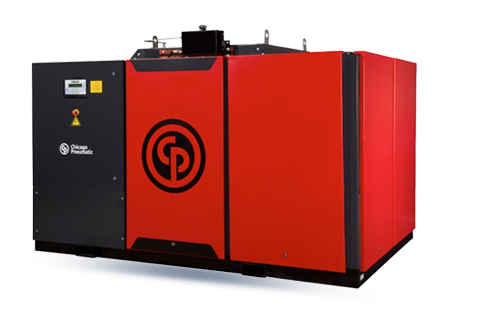

Silenced Oil Free Air Compressor

Chicago Pneumatic are highly committed to deliver 100% oil free air for critical applications including pharmaceuticals, food and beverage processing, chemical processing, cement & electronics manufacturing industries.

PX PXi compressor
  • 100% Oil Free Air compressor with canopy
  • Smart design, extremely low noise level
  • Foundation free design
  • High efficiency drive system
  • Unique cooler assembly design
  • Reliability & high uptime

Easy control
ES4000 Advanced controller for easy control & monitoring.


Unique
Cooler with separable radiator” in single frame


Integrated
water separator device

PX-Oil Free Compressors
Type #
Max Working Pressure




bar (e)
psig
Capacity



l/s m3 / min cfm
Max Working Pressure




Kw
HP
Dimensions
(LBH)
PX 30
7 102
75 4.47 158
22 30
3070 x 1810 x 2055
10 145
58 3.45 122
22 30
PX 40
7 102
105 6.31 223
30 40
10 145
89 5.35 189
30 40
PX 50
7 102
129 7.73 273
37 50
10 145
101 6.06 214
37 50
PX 60
7 102
157 9.40 332
45 60
10 145
134 8.01 283
45 60
PX 75
7 102
194 11.67 412
55 75
3070 x 2070 x 2055
10 145
153 9.17 324
55 75
12 174
141 8.44 298
55 75
15 218
131 7.87 278
55 75
PX 100
7 102
247 14.84 524
75 100
10 145
223 13.37 472
75 100
12 174
197 11.81 417
75 100
15 218
189 11.33 400
75 100


PX-Oil Free Compressors
(Inverter) #
Max Working Pressure




bar (e)
psig
Capacity



l/s m3 / min cfm
Max Working Pressure




Kw
HP
Dimensions
(LBH)
PXi 50
7.0 101.5
94.9 5.7 201
37.0 50.0
3070 x 1810 x 2055
8.5 123.3
93.4 5.6 198
37.0 50.0
10.0 145.0
90.0 5.4 190
37.0 50.0
PXi 75
7.0 101.5
145.8 8.7 309
55 75
8.5 123.3
143.5 8.6 304
55 75
10.0 145.0
138.2 8.3 293
55 75
PXi 120
7.0 101.5
220.3 13.2 467
90 120
8.5 123.3
217.1 13.0 460
90 120
10.0 145.0
210.4 12.6 446
90 120
Note: Ambient Temp & Cooling Water:- 32°C, 89.6°F
Suction Pressure:- 1 bar (e), 14.5 psig
*Reference conditions according to BS 1571 Part II
*Capacity measurement at the outlet of Package.
# Water Cooled Version, Air Dryer & Receiver are an optional.
