Oil Injected Rotary Screw Air Compressors
Chicago Pneumatic is a leader in the design and manufacture of industrial compressors
including tank-mounted and dryer versions.
including tank-mounted and dryer versions.

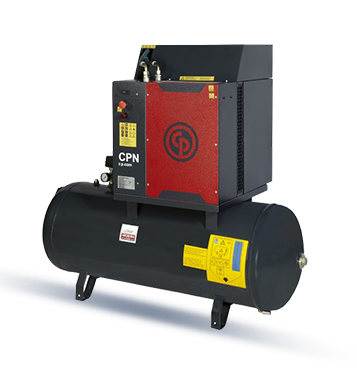

CPN Compressors
Great performance in a small package
Our CPN 3-20 hp compact rotary screw compressor range is ideal for small industries with applications such as winery, garages, paint shops, tire shops, etc. The CPN is the smallest stationary screw compressor in the range, combining the simplicity and cost effectiveness of a piston with the durability, technology and energy efficiency of a screw compressor.
More efficient than a piston but simple to install and to use, designed to work continuously, always installed on vessel with or without dryer, CPN allows you to get 100% performance, 24 hours a day from your equipment without fearing a single failure.
|
|
|
|
|
|
|
|
||||||||||||||||||
| CPN 10 | 10 |
|
|
1/2" |
|
1540 x 685 x 1350 | 1540 x 860 x 1350 | ||||||||||||||||||
| CPN 15 | 15 |
|
|
||||||||||||||||||||||
| CPN 20 | 20 |
|
|

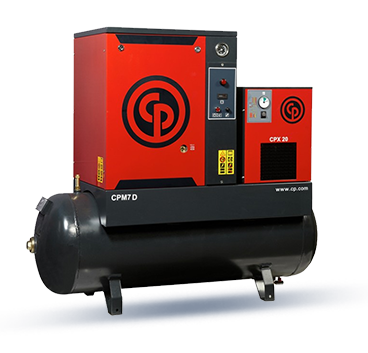

CPM – Oil Injected Screw Air Compressors
A small, powerful machine featuring the components of larger compressors.
The tank-mounted air compressor is especially suitable for location near the application of the compressed air or as an extension to existing installations.
The tank-mounted compressor with dryer is tailored to installations that need to produce compressed air with a low dew point. The unit consists of a compressor, a tank and a refrigerating dryer using R 134 gas. It features a dew-point indicator and timed condensate discharge. When oil-free compressed air is required, the unit can be fitted with a series of oil removal filters.
More efficient than a piston but simple to install and to use, designed to work continuously, always installed on vessel with or without dryer, CPN allows you to get 100% performance, 24 hours a day from your equipment without fearing a single failure.
|
|
|
|
|
|
|
|
||||||||||||||||||
| CPM 3 | 3 | 10 | 8 | 61 |
|
1495 x 550 x 1285 | 1440 x 550 x 1285 | ||||||||||||||||||
| CPM 4 | 4 | 11 |
|
||||||||||||||||||||||
| CPM 5 | 5 | 16 | 62 |
|
|||||||||||||||||||||
| CPM 7 | 7 | 21 |
|
Note: Unit performance measured according to ISO 1217 Ed 3 Annex C. 1996.
Noise level measured according to Pneurop / CAGI PN8NTC2
Suffix D indicates air dryer version.
Noise level measured according to Pneurop / CAGI PN8NTC2
Suffix D indicates air dryer version.

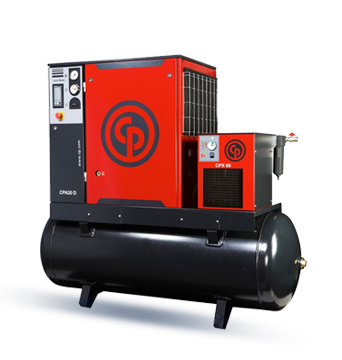

CPA-Oil Injected Rotary Screw Air Compressors
Tank mounted air compressors / Floor mounted / Tank mounted with dryer
Tank mounted air compressors
Tank Mounted air compressors are especially suitable for new or independent installations where compressed air with a low noise level is needed. The unit consists of a compressor and tank.
Tank Mounted air compressors are especially suitable for new or independent installations where compressed air with a low noise level is needed. The unit consists of a compressor and tank.
Industrial technology
compressors
compressors
High quality in design
components and manufacturing
components and manufacturing
Factory tested complete
compressed air system use of
world class rotary screw elements
designed for continuous operation
compressed air system use of
world class rotary screw elements
designed for continuous operation
High quality
manufacturing standards
make the CPA compressor a
highly reliable compressed air system
manufacturing standards
make the CPA compressor a
highly reliable compressed air system
Floor-mounted air compressor
Especially suitable for installations near which compressed air is needed or as an extension to existing installations.
Tank-mounted with dryer
Especially suitable for installations that need to produce compressed air with a low dew-point. The unit consists of a compressor, a tank and a refrigerating dryer using R 134 gas. It features a dew-point indicator and timed condensate discharge. When oil-free compressed air is required, the unit can be fitted with a series of de-oiling filters
Especially suitable for installations near which compressed air is needed or as an extension to existing installations.
Tank-mounted with dryer
Especially suitable for installations that need to produce compressed air with a low dew-point. The unit consists of a compressor, a tank and a refrigerating dryer using R 134 gas. It features a dew-point indicator and timed condensate discharge. When oil-free compressed air is required, the unit can be fitted with a series of de-oiling filters
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||
| CPA 7 | 7.5 |
|
|
68 | 3/4" |
|
620 x 965 x 1040 | 1485 x 620 x 1640 | 1925 x 620 x 1350 | |||||||||||||||||||||||||
| CPA 10 | 10 |
|
|
|||||||||||||||||||||||||||||||
| CPA 15 | 15 |
|
|
|||||||||||||||||||||||||||||||
| CPA 20 | 20 |
|
|

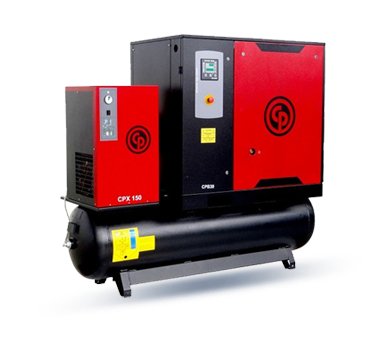

CPB Series - High-Efficiency Compression System
The two asymmetric rotors, which are equal in diameter, are mounted on high-quality, low-wear bearings. The high degree of pressure seal and very fine tolerances reached by the rotors are guaranteed even in low-power operations. The greater production, higher efficiency, durability and dependability of CPB compressors guarantee constant performance over time.
- Professional and clean technical execution.
- Dry suction filter with silencer.
- Asymmetrical oil-flooded screw for optimal efficiency.
- Three-phase electric motor, class, F, IP55.
- V-type belt transmission with guided alignment belt tensioner.
- Oil receiver with high-efficiency 2-3 ppm air/oil separator filter.
- Oil level indicator outside the machine.
- External pre-filter that is easily removable for cleaning.
- Elegant, soundproofed and powder-coated bodywork.
- Steel base plate, designed for access and transport from three sides.
- Control and adjustment panel with ES 3000 electronic controller.
Reliability
The attention paid in design and construction, in the selection of components and the certification of our Quality and Environmental Management Systems are our guarantee of a highly reliable product.
The attention paid in design and construction, in the selection of components and the certification of our Quality and Environmental Management Systems are our guarantee of a highly reliable product.
Ecology
The low of noise pollution, regulation by intelligent switching off and their high performance makes these machines leaders in respect for the environment.
The low of noise pollution, regulation by intelligent switching off and their high performance makes these machines leaders in respect for the environment.
Performance
The exclusive use of high quality components with years of testing behind them, the high production efficiency achieved by our current assembly lines, a rational layout, and fewer components subject to wear have allowed us to obtain superior performance from this series of machines.
The exclusive use of high quality components with years of testing behind them, the high production efficiency achieved by our current assembly lines, a rational layout, and fewer components subject to wear have allowed us to obtain superior performance from this series of machines.
Maintenance
All the components, and especially those subject to scheduled maintenance, are positioned so that they can be easily reached during any type of service.
All the components, and especially those subject to scheduled maintenance, are positioned so that they can be easily reached during any type of service.
More Air for Less Power
The operation of the Screw Air Compressors is regulated by a controller which considerably reduces electrical energy consumption based on your air consumption.
The operation of the Screw Air Compressors is regulated by a controller which considerably reduces electrical energy consumption based on your air consumption.
Quiet Operation
The state-of-the-art rotary screw technology along with a acoustic sound enclosure.
The state-of-the-art rotary screw technology along with a acoustic sound enclosure.
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
| CPB 20 | 20 |
|
|
72 | 1" |
|
1300 x 780 x 1200 | 2215 x 780 x 1810 | ||||||||||||||||||||
| CPB 25 | 25 |
|
|
|||||||||||||||||||||||||
| CPB 30 | 30 |
|
|
|||||||||||||||||||||||||
| CPB 40 | 40 |
|
|
Gear Drive Compressor
With vast experience in rotary screw compressors, Chicago Pneumatic has introduced new dimension with gear drive technology for energy efficient production. The gear driven transmission maximizes machine output for the given pressure and power
CPC 60
|
|
|
|
|
|
|
|
||||||||
| CPC 40 | 40 |
|
|
73 | 1 1/2" | 865 | 1680 x 955 x 1505 | ||||||||
| CPC 50 | 50 |
|
|
73 | 1 1/2" | 865 | 1680 x 955 x 1505 | ||||||||
| CPC 60 | 60 |
|
|
73 | 1 1/2" | 895 | 1680 x 955 x 1505 |
CPD
|
|
|
|
|
|
|
|
||||||||
| CPD 75 | 75 |
|
|
71 | 2" | 1165 | 1850 x 1060 x 1635 | ||||||||
| CPD 100 | 100 |
|
|
74 | 2" | 1195 | 1850 x 1060 x 1635 |
CPE
|
|
|
|
|
|
|
|
||||||||
| CPE 100 | 100 |
|
|
73 | 2" | 1640 | 2210 x 1060 x 1595 | ||||||||
| CPE 120 | 120 |
|
|
74 | 2" | 1640 | 2210 x 1060 x 1595 |
CPE / CPF / CPG
|
|
|
|
|
|
|
|
||||||||
| CPE 150 | 150 |
|
|
78 | 2 1/2" | 2900 | 2780 x 1680 x 2010 | ||||||||
| CPE 180 | 180 |
|
|
79 | 3" | 3500 | 2780 x 1970 x 2010 | ||||||||
| CPE 220 | 220 |
|
|
79 | 3" | 3550 | 2780 x 1970 x 2010 | ||||||||
| CPF 270 | 270 |
|
|
80 | DN 125 | 4660 | 3500 x 2135 x 2350 | ||||||||
| CPF 340 | 340 |
|
|
80 | DN 125 | 5590 | 3500 x 2135 x 2350 | ||||||||
| CPG 380 | 380 |
|
|
81 | DN 125 | 7380 | 3525 x 2135 x 2350 | ||||||||
| CPG 450 | 450 |
|
|
82 | DN 150 | 8680 | 5500 x 2135 x 2350 | ||||||||
| CPG 480 | 480 |
|
|
82 | DN 150 | 8740 | 5500 x 2135 x 2350 |

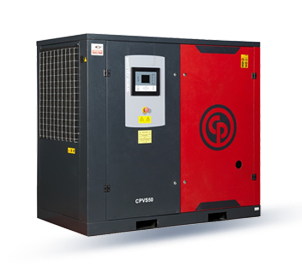

IVR Series: Variable Speed Drive Compressors

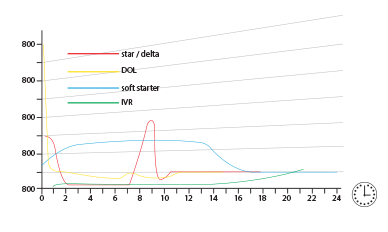

Our extensive experience with compressed air generating products and various application has taught us that, regardless of compressor size...
- The amount of compressed air needed varies according to consumption peaks.
- More the variation in compressed air consumption, more energy is consumed per liter of air produced.
- Most installations require two or three compressors of different sizes. Variations in the amount of compressed air needed causes constant loading and emptying of the compressors or choked intake.
- If a compressor operates on no load, energy is wasted while no work is performed.
- If a compressor operates with restricted intake, it consumes more energy than would be required to produce the same amount of compressed air.
Variable load
IVR compressors from Chicago Pneumatic operate optimally under any variable load conditions and ensure maximum capacity with minimum consumption. All components are reliable, efficient and time-proven, and are the standard components used in traditional machines.
IVR compressors from Chicago Pneumatic operate optimally under any variable load conditions and ensure maximum capacity with minimum consumption. All components are reliable, efficient and time-proven, and are the standard components used in traditional machines.
High efficiency
The IVR drive selected is the world's leading brand, and is built into the machine. Compressor with asymmetric screws. High efficiency, high output and low noise level.
The IVR drive selected is the world's leading brand, and is built into the machine. Compressor with asymmetric screws. High efficiency, high output and low noise level.
Air/oil separator
Compact, highly efficient air/air and air/oil coolers maintain optimum oil temperature and keep delivery air cool. Main electric motor enclosed, air-cooled with external ventilation and Class F insulation. Triple-action air/oil separator guarantees compressed air delivery with lower residual-oil content.
Compact, highly efficient air/air and air/oil coolers maintain optimum oil temperature and keep delivery air cool. Main electric motor enclosed, air-cooled with external ventilation and Class F insulation. Triple-action air/oil separator guarantees compressed air delivery with lower residual-oil content.
State-of-the-art control system
Control panel with state-of-the-art control system, microprocessor diagnostics and alphanumerical display for safe, efficient machine management.
Control panel with state-of-the-art control system, microprocessor diagnostics and alphanumerical display for safe, efficient machine management.
Data displayed
All data displayed in standardized symbols Built-in IVR for compressor speed variation and ramped motor startup, including standard RFI filters.
All data displayed in standardized symbols Built-in IVR for compressor speed variation and ramped motor startup, including standard RFI filters.
Excellent sound proofing
Sturdy steel base set-up for easy handling.
Sturdy steel base set-up for easy handling.
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||
| CPVR 15 | 7 |
|
|
|
|
|
68 | 3/4" | 230 | 965 x 620 x 1040 | ||||||||||||||||||||||||||||||||
| CPVR 20 | 10 |
|
|
|
|
|
72 | 1" | 420 | 1300 x 780 x 1200 | ||||||||||||||||||||||||||||||||
| CPVR 25 | 10 |
|
|
|
|
|
72 | 1" | 460 | 1300 x 780 x 1200 | ||||||||||||||||||||||||||||||||
| CPVR 30 | 10 |
|
|
|
|
|
72 | 1" | 485 | 1320 x 780 x 1190 | ||||||||||||||||||||||||||||||||
| CPVS 40 | 10 |
|
|
|
|
|
73 | 1 1/2" | 885 | 1680 x 955 x 1505 | ||||||||||||||||||||||||||||||||
| CPVS 40 | 13 |
|
|
|
|
|
73 | 1 1/2" | 885 | 1680 x 955 x 1505 | ||||||||||||||||||||||||||||||||
| CPVS 50 | 10 |
|
|
|
|
|
73 | 1 1/2" | 905 | 1680 x 955 x 1505 | ||||||||||||||||||||||||||||||||
| CPVS 50 | 13 |
|
|
|
|
|
73 | 1 1/2" | 905 | 1680 x 955 x 1505 | ||||||||||||||||||||||||||||||||
| CPVS 60 | 10 |
|
|
|
|
|
73 | 1 1/2" | 935 | 1680 x 955 x 1505 | ||||||||||||||||||||||||||||||||
| CPVS 60 | 13 |
|
|
|
|
|
73 | 1 1/2" | 935 | 1680 x 955 x 1505 | ||||||||||||||||||||||||||||||||
| CPVS 75 | 10 |
|
|
|
|
|
75 | 2" | 1230 | 1850 x 1060 x 1635 | ||||||||||||||||||||||||||||||||
| CPVS 75 | 13 |
|
|
|
|
|
75 | 2" | 1230 | 1850 x 1060 x 1635 | ||||||||||||||||||||||||||||||||
| CPVS 100 | 7 |
|
|
|
|
|
75 | 2" | 1640 | 2210 x 1060 x 1595 | ||||||||||||||||||||||||||||||||
| CPVS 100 | 10 |
|
|
|
|
|
75 | 2" | 1640 | 2210 x 1060 x 1595 | ||||||||||||||||||||||||||||||||
| CPVS 100 | 13 |
|
|
|
|
|
75 | 2" | 1640 | 2210 x 1060 x 1595 | ||||||||||||||||||||||||||||||||
| CPVS 120 | 7 |
|
|
|
|
|
74 | 2 1/2" | 3300 | 2780 x 1680 x 2010 | ||||||||||||||||||||||||||||||||
| CPVS 125 | 7 |
|
|
|
|
|
79 | 2 1/2" | 2250 | 2400 x 1600 x 2080 | ||||||||||||||||||||||||||||||||
| CPVS 150 | 7 |
|
|
|
|
|
74 | 2 1/2" | 3300 | 2780 x 1680 x 2010 | ||||||||||||||||||||||||||||||||
| CPVS 220 | 7 |
|
|
|
|
|
74 | 3" | 3300 | 2780 x 1680 x 2010 |
